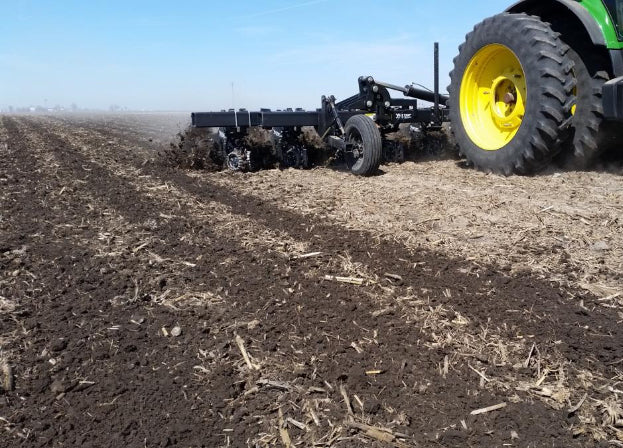

With the versatile design of the Single-Frame Hydraulic Locking Toolbar, growers can achieve the exact custom setup they need for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand-rest for transport. It is available in two widths: 31' and 41'.

• Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
• Can be customized for use for odd or even row spacing depending on the application of the attachment
• Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing
• Wings fold flat using 4" x 24" hydraulic cylinders; adjustable stop-stands can be added
• Fits category 3N, category 3 and category 4N hitches
• Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
• Optional rear hitch
• Includes parking stand

• 3800 Series Single Hydraulic Locking Toolbar Manual

• Folding Yetter Toolbar
