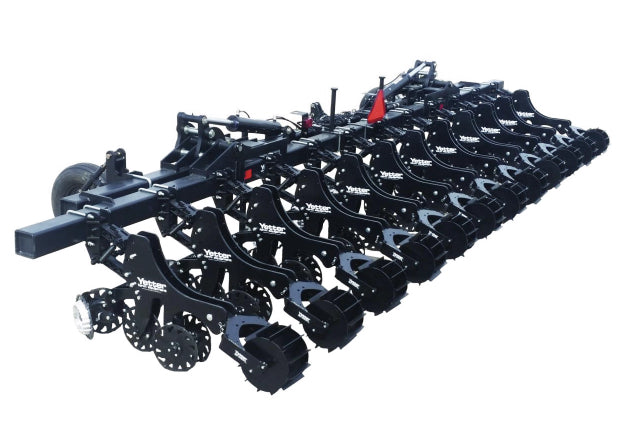

Yetter 3831-101 31' Double Hydraulic Locking Toolbar

Please call 419-942-3512 for pricing.

Need more information about this product?

Call us at 419-942-3512.

The Double-Frame Hydraulic Locking Toolbar can be customized for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand rest for transport. It is available in two widths: 31' and 41'.

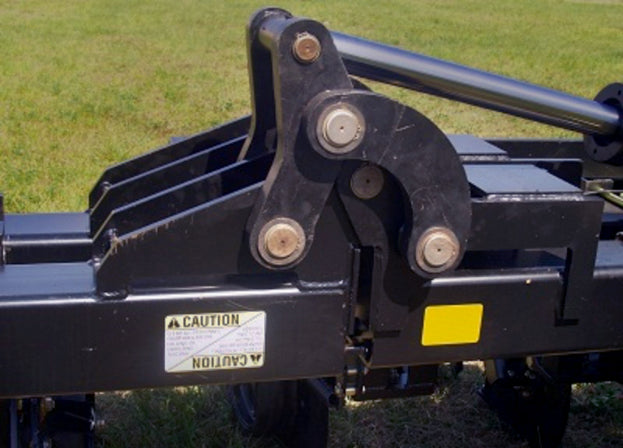

  • Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
  • Can be customized for odd or even row spacing depending on the application of the attachment
  • Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing
  • Wings fold flat using 5" x 24" hydraulic cylinders; adjustable stop-stands can be added
  • Features 5" spacing between front and back bar
  • Fits category 3N, category 3 and category 4N hitches
  • Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
  • Optional rear hitch
  • Includes parking stand
  • Rear hitch for fertilizer cart
  • 3-point hitch options
    • Category 3
    • Category 3 Narrow
    • Category 4

Product Description

The Double-Frame Hydraulic Locking Toolbar can be customized for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand rest for transport. It is available in two widths: 31' and 41'.

  • Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
  • Can be customized for odd or even row spacing depending on the application of the attachment
  • Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing
  • Wings fold flat using 5" x 24" hydraulic cylinders; adjustable stop-stands can be added
  • Features 5" spacing between front and back bar
  • Fits category 3N, category 3 and category 4N hitches
  • Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
  • Optional rear hitch
  • Includes parking stand

Options

  • Rear hitch for fertilizer cart
  • 3-point hitch options
    • Category 3
    • Category 3 Narrow
    • Category 4
