Valmar 245 Pull-Type Granular Applicator

Please call 419-942-3512 for pricing.

Need more information about this product?

Call us at 419-942-3512.

Whether you’re seeding or applying herbicide, a Salford Valmar 245 Pull-Type Granular Applicator is designed to deliver unparalleled accuracy under a wide variety of ground conditions. Its rugged construction is sturdy enough to withstand the rigors of commercial use, making it the right choice for a rental fleet, custom applicator, or a farm operation. Moreover, the 245 incorporates a number of innovative features designed to make material application easier, safer and more precise than ever before.

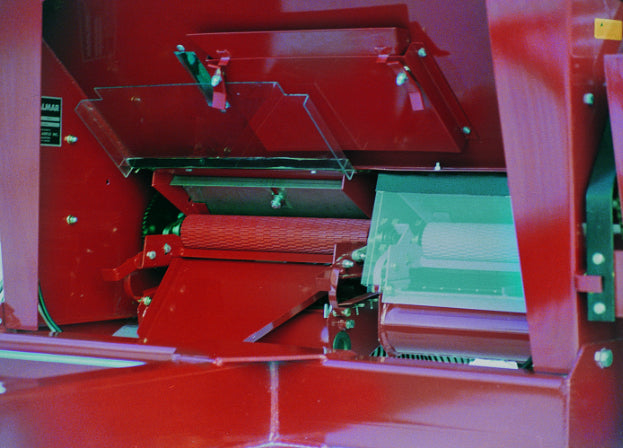

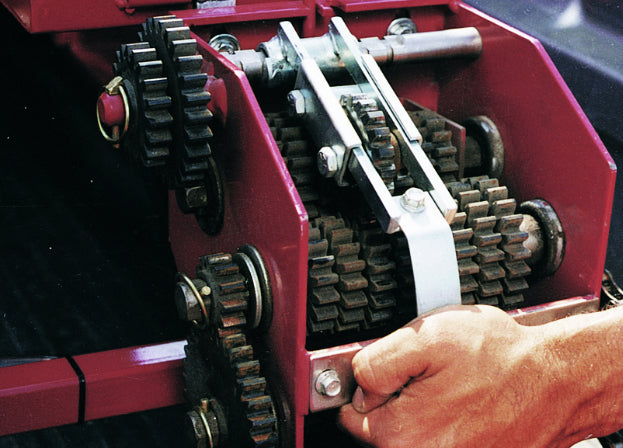

The 245 applicator achieves its accuracy, thanks to a ground-driven metering system that ensures the precise application rate regardless of ground speed. As with most Valmar units, the 245 uses our 60-speed gearbox that allows the application rates in increments of five percent. Drive ratio changes are made at the gearbox, eliminating the need to move chains and realign sprockets.

The 245’s wide 50-ft. boom and large 40-cu.-ft. hopper (capable of holding up to 1,800 lb. of product at a density of 45 lb./cu. ft.) enables operators to cover more acres between fills. Equally important, the self-levelling boom ensures a uniform spread pattern, regardless of field conditions. For safety, the boom also features 8-ft. breakaway tips to help minimize damage that may occur from striking an obstacle in the field.

Calibrating an applicator is necessary to ensure proper flow rates, especially when determining the setting for new products, seeds or seed mixtures. The 245 applicator makes this process easier by allowing the venturi and manifold system to be dropped so that a funnel tray can be inserted for easy collection of product. Operators can use the crank handle (provided) to simulate ground travel and establish precise calibration for any product. The funnel also makes emptying the hopper an easy and safe procedure.

Hopper

  • 40 cubic feet
  • Mild steel with two-component epoxy primer and two-component, cross-linked acrylic top coat paint system
  • Weather tight lid
  • Product level sight gauge
  • Hopper bottom shut-off gates

Booms

  • 50-foot spread, breakaway tips
  • Self-leveling
  • Manual fold
  • 1 ½-inch OD tubes, 12 outlets per side

Metering

  • Ground driven
  • Half shut-off on either side
  • 28-groove plastic fluted metering roller – 12-groove available for more coarse material or higher rates
  • In-cab electric clutch control and air manifold monitor
  • 60-speed gearbox with five percent between settings
  • Air manifold and venturi system drop for easy cleaning

Chassis

  • 6,000-pound rubber torsion axle
  • Six bolt hubs
  • 12.5 L – 15 in. tires
  • 12-groove roller assemblies for coarse material
  • Agitator kit

Product Description

Whether you’re seeding or applying herbicide, a Salford Valmar 245 Pull-Type Granular Applicator is designed to deliver unparalleled accuracy under a wide variety of ground conditions. Its rugged construction is sturdy enough to withstand the rigors of commercial use, making it the right choice for a rental fleet, custom applicator, or a farm operation. Moreover, the 245 incorporates a number of innovative features designed to make material application easier, safer and more precise than ever before.

The 245 applicator achieves its accuracy, thanks to a ground-driven metering system that ensures the precise application rate regardless of ground speed. As with most Valmar units, the 245 uses our 60-speed gearbox that allows the application rates in increments of five percent. Drive ratio changes are made at the gearbox, eliminating the need to move chains and realign sprockets.

The 245’s wide 50-ft. boom and large 40-cu.-ft. hopper (capable of holding up to 1,800 lb. of product at a density of 45 lb./cu. ft.) enables operators to cover more acres between fills. Equally important, the self-levelling boom ensures a uniform spread pattern, regardless of field conditions. For safety, the boom also features 8-ft. breakaway tips to help minimize damage that may occur from striking an obstacle in the field.

Calibrating an applicator is necessary to ensure proper flow rates, especially when determining the setting for new products, seeds or seed mixtures. The 245 applicator makes this process easier by allowing the venturi and manifold system to be dropped so that a funnel tray can be inserted for easy collection of product. Operators can use the crank handle (provided) to simulate ground travel and establish precise calibration for any product. The funnel also makes emptying the hopper an easy and safe procedure.

Hopper

  • 40 cubic feet
  • Mild steel with two-component epoxy primer and two-component, cross-linked acrylic top coat paint system
  • Weather tight lid
  • Product level sight gauge
  • Hopper bottom shut-off gates

Booms

  • 50-foot spread, breakaway tips
  • Self-leveling
  • Manual fold
  • 1 ½-inch OD tubes, 12 outlets per side

Metering

  • Ground driven
  • Half shut-off on either side
  • 28-groove plastic fluted metering roller – 12-groove available for more coarse material or higher rates
  • In-cab electric clutch control and air manifold monitor
  • 60-speed gearbox with five percent between settings
  • Air manifold and venturi system drop for easy cleaning

Chassis

  • 6,000-pound rubber torsion axle
  • Six bolt hubs
  • 12.5 L – 15 in. tires

Options

  • 12-groove roller assemblies for coarse material
  • Agitator kit
