Salford Independent Series I-1100 RTS

Please call 419-942-3512 for pricing.

Need more information about this product?

Call us at 419-942-3512.

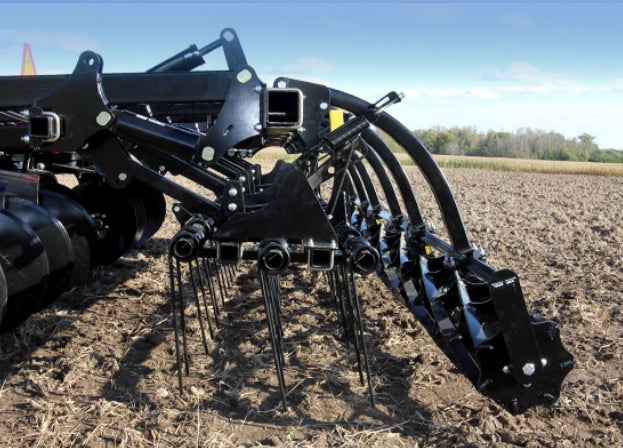

1 1/4" Coil-Tech Coulter™ Blade Mount

Celebrating a decade of improving soil productivity with true vertical tillage, the patented I-1100 uses the Coil-Tech Coulter I to carry independently mounted blades that have up to six inches vertical travel and are able to move around obstacles. Unlike disc gangs that have difficulty following ground contours or are forced to leave the ground when one blade contacts an obstacle, the I-1100 independently mounted coulters follow changes in terrain and each coulter faces obstructions on its own. The Independent Series has industry-leading speed, obstacle protection, and range of operating conditions, with little to no soil moisture and residue limitations. The Coil-Tech Coulter I system thrives on the high operating speeds of the I-1100. Positive coulter vibration works the ground like a jackhammer, fracturing the soil around and below the operating depth of these unique machines. Independent Series tools manage residue and soil density to improve soil moisture storage capacity, build soil organic matter, and hold onto valuable nutrients such as nitrogen, phosphorus, and potassium.

Coulters and Mounts

  • 20” dia x 5mm coulter
  • Boron steel blades
  • 8 or 13 wave blades
  • 6” of vertical travel

Frame

  • Heavy Duty 4”x 6” tubing
  • Hydraulic level lift
  • Hydraulic single-point depth control
  • Heat treated cast clevis hitch
  • Operator convenience center
  • Welded main frame with capped tube ends

Tires—Mainframe

  • 12’- 16’ 6 bolt 11L x 15 “F”
  • 20’ - 31’ 8 bolt 12.5 L x 15 “F”
  • 36’ – 41’ 8 bolt 305/70 x R22.5
  • 50’ (5 Section) 8 bolt 425-65R x 22.5
  • 60’ (5 section) – 10 bolt 445-65R x 22.5

Tires—Wings

  • 20’ – 41’ All Wings
  • 11L x 15 6 bolt load range “D"”
  • 50’, 60’ – All Wings
  • 8 bolt 12.5 L x 15 “F”
  • Hydraulic Lines and Quick Coupler to Tow Hitch
  • Axle Pivot Grease Bank
  • Roller Dirt Shield
  • Manually Adjustable HD Tines and Rolling Baskets

Product Description

1 1/4" Coil-Tech Coulter™ Blade Mount

Celebrating a decade of improving soil productivity with true vertical tillage, the patented I-1100 uses the Coil-Tech Coulter I to carry independently mounted blades that have up to six inches vertical travel and are able to move around obstacles. Unlike disc gangs that have difficulty following ground contours or are forced to leave the ground when one blade contacts an obstacle, the I-1100 independently mounted coulters follow changes in terrain and each coulter faces obstructions on its own. The Independent Series has industry-leading speed, obstacle protection, and range of operating conditions, with little to no soil moisture and residue limitations. The Coil-Tech Coulter I system thrives on the high operating speeds of the I-1100. Positive coulter vibration works the ground like a jackhammer, fracturing the soil around and below the operating depth of these unique machines. Independent Series tools manage residue and soil density to improve soil moisture storage capacity, build soil organic matter, and hold onto valuable nutrients such as nitrogen, phosphorus, and potassium.

Coulters and Mounts

  • 20” dia x 5mm coulter
  • Boron steel blades
  • 8 or 13 wave blades
  • 6” of vertical travel

Frame

  • Heavy Duty 4”x 6” tubing
  • Hydraulic level lift
  • Hydraulic single-point depth control
  • Heat treated cast clevis hitch
  • Operator convenience center
  • Welded main frame with capped tube ends

Tires—Mainframe

  • 12’- 16’ 6 bolt 11L x 15 “F”
  • 20’ - 31’ 8 bolt 12.5 L x 15 “F”
  • 36’ – 41’ 8 bolt 305/70 x R22.5
  • 50’ (5 Section) 8 bolt 425-65R x 22.5
  • 60’ (5 section) – 10 bolt 445-65R x 22.5

Tires—Wings

  • 20’ – 41’ All Wings
  • 11L x 15 6 bolt load range “D"”
  • 50’, 60’ – All Wings
  • 8 bolt 12.5 L x 15 “F”

Options

  • Hydraulic Lines and Quick Coupler to Tow Hitch
  • Axle Pivot Grease Bank
  • Roller Dirt Shield
  • Manually Adjustable HD Tines and Rolling Baskets
